DMD Wiring Harness for Nor7e / T880 / T865

Replacement or additional harness for your DMD Nor7e, T-880 or T865 Tablet

Use this harness on your second bike or in your other vehicle to power your DMD Nor7e, T-880 or T865 Tablet. Or use it to replace a damaged harness. This harness assembly contains everything you need to connect your tablet to power and to your DMD Remote 2.

Includes:

• Complete DMD Nor7e / T865 / T880 Harness

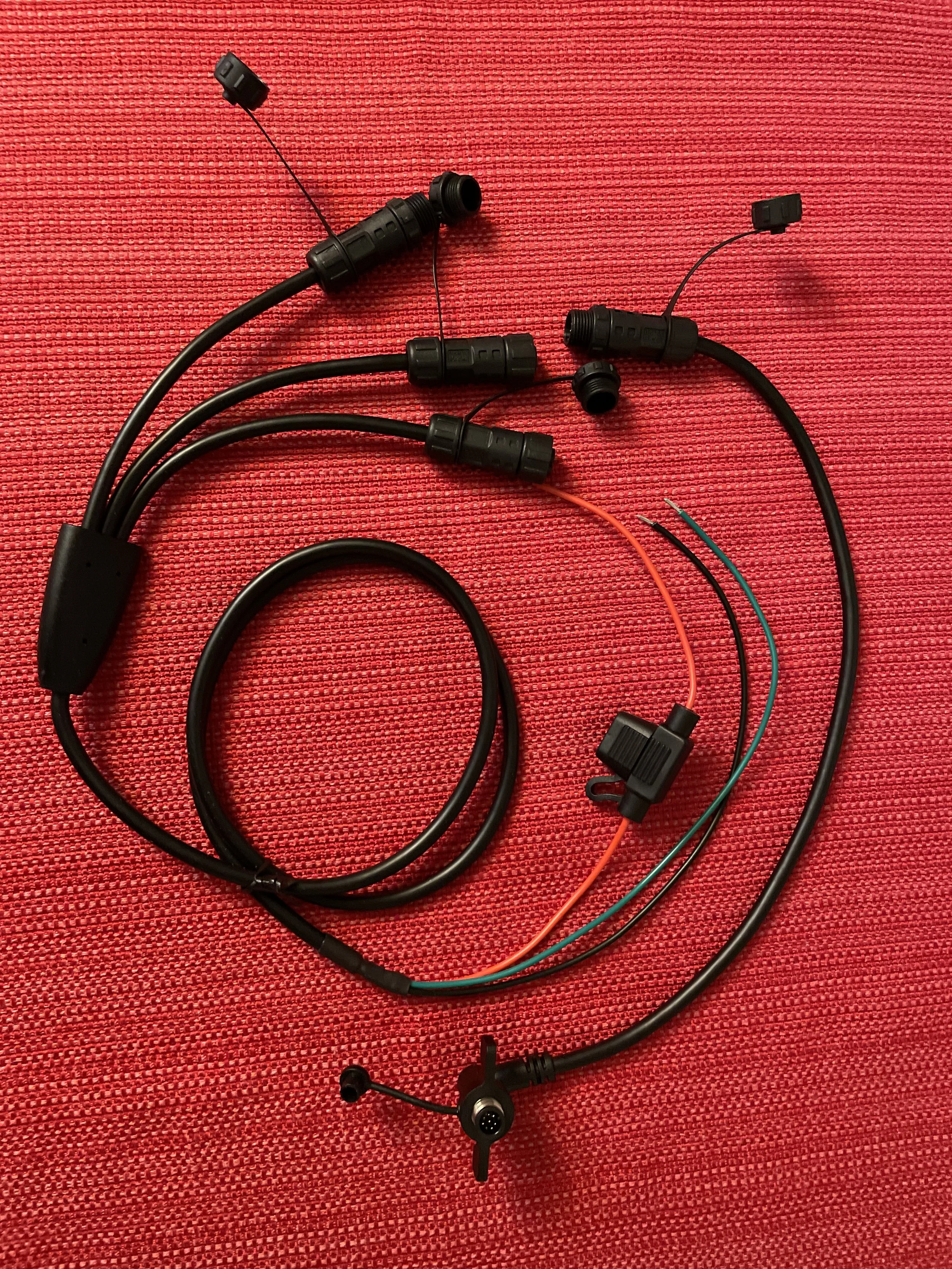

• Main harness with fuses and 3 connectors (Holder Connector + Remote Controller Connector + M12 Connector)

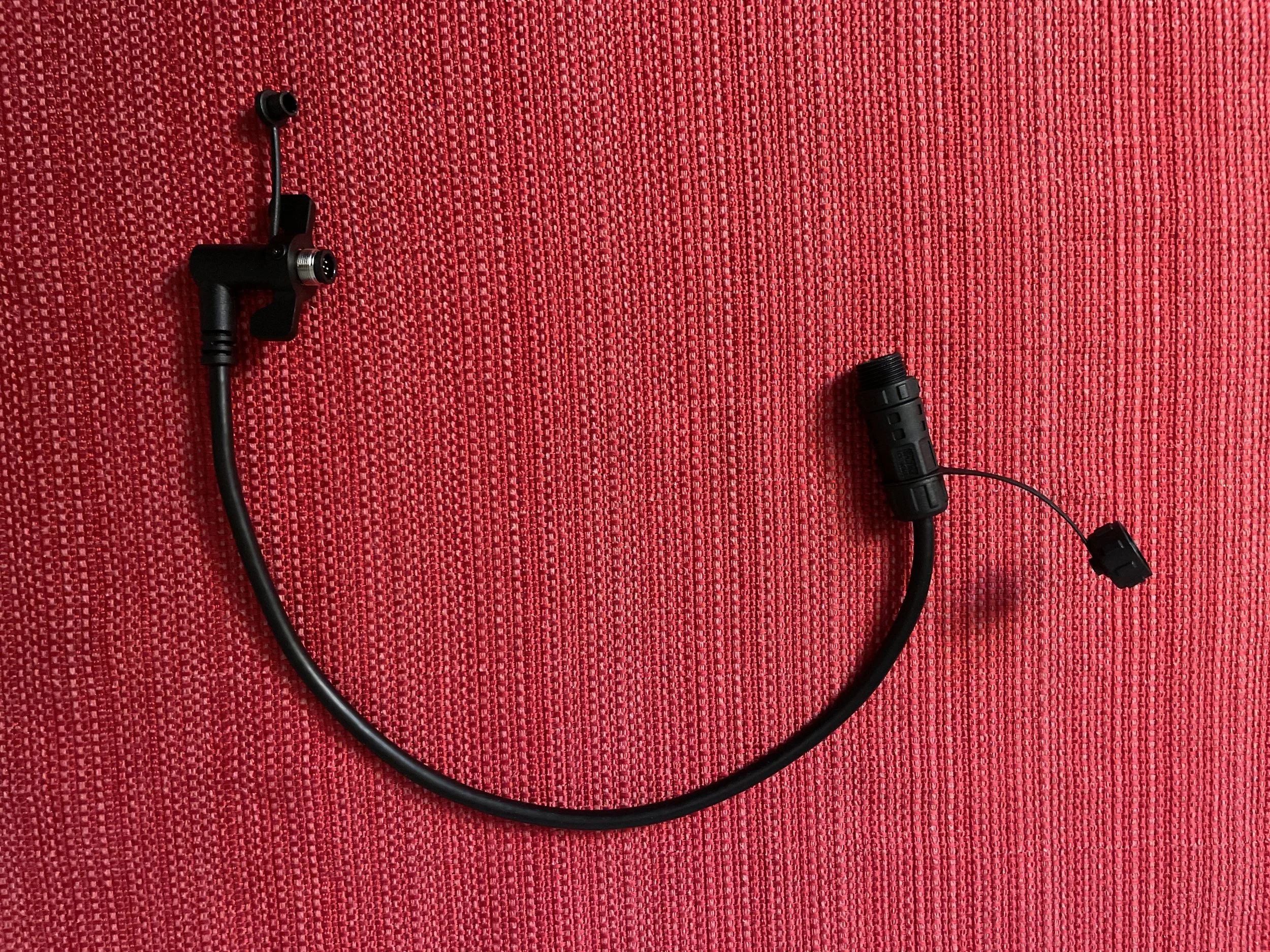

• M12 screw type cable to connect to back of the tablet

Features:

• Solid construction

• Has caps for unused connectors to keep moisture and dirt out

• Includes 3 amp fuse for power connection

• Designed for rough service use on your motorcycle

• Water-proof

• Powers both your tablet and your DMD Remote Control from the same 12v DC source

Connections:

• Red Wire - Connect to motorcycle 12V

• Black Wire - Connect to motorcycle ground

• Green Wire - Used to trigger shutdown if red and black wires are connected directly to battery. Ideally you should ignore this wire, red and black should be connected post ignition and when it is so, the green wire is not used since shutdown will be triggered on red wire power cut.
