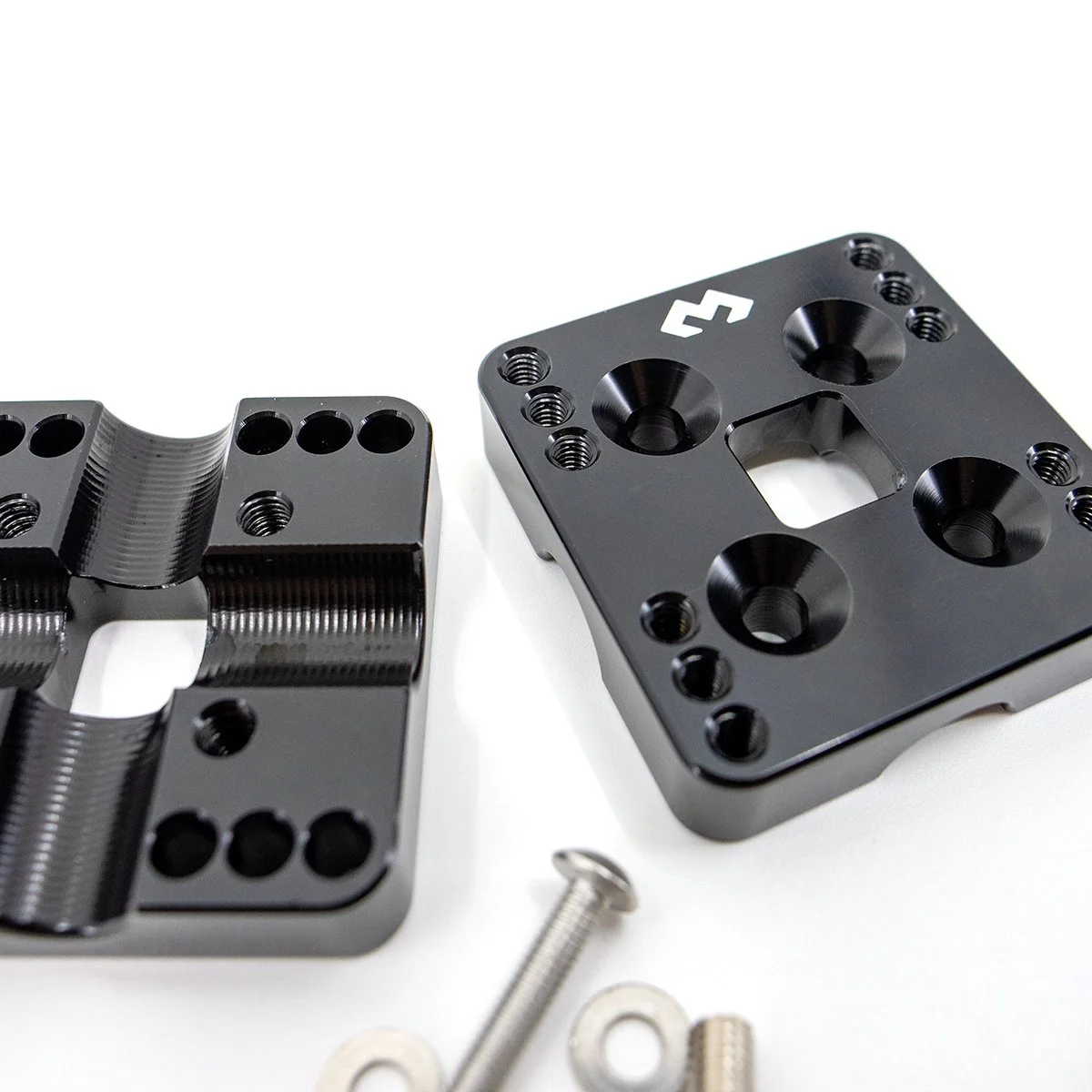

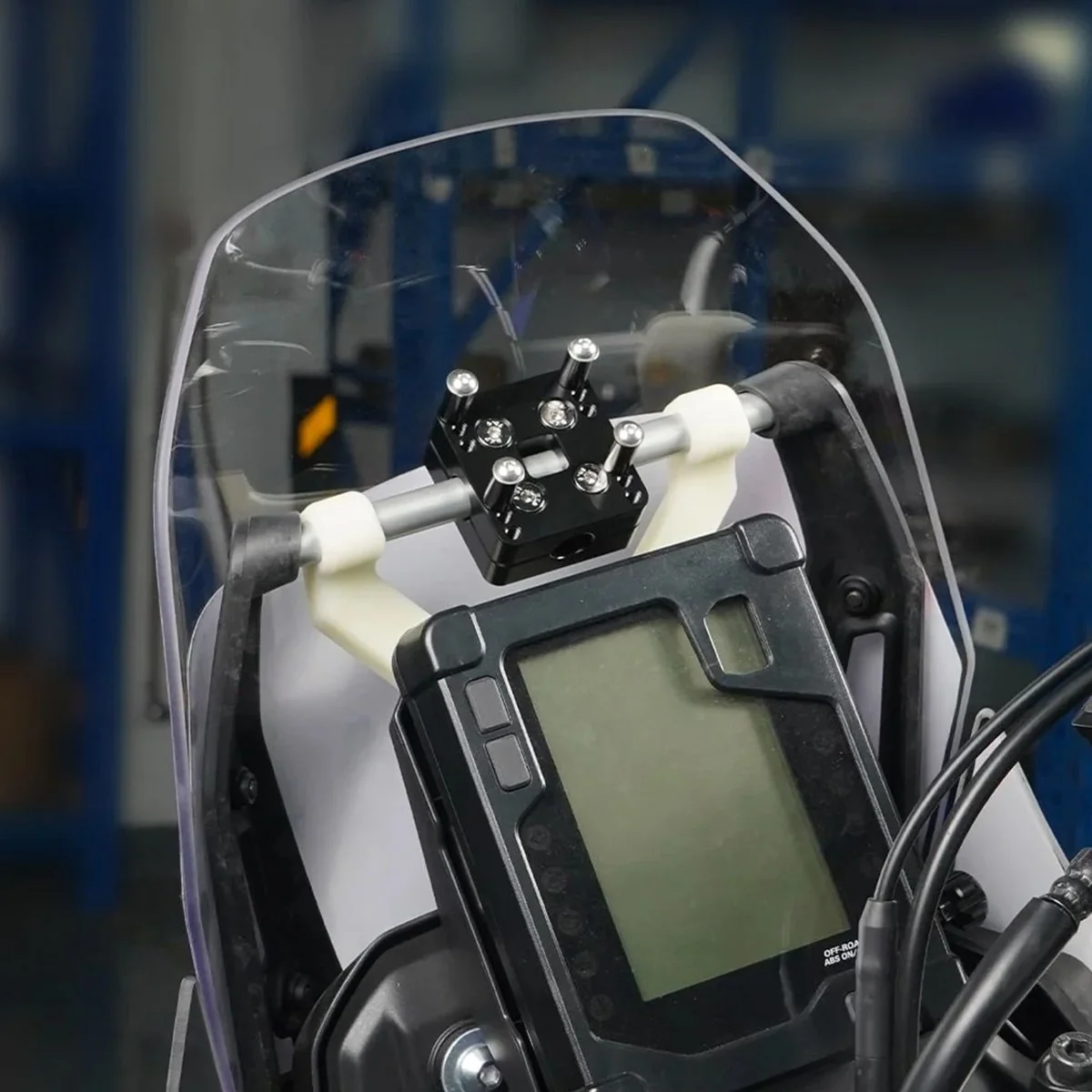

Use this low profile mount to secure your device to a 12mm bar on your bike
AMPS Hole Pattern - The standard industrial hole pattern consisting of 4 holes aligned in a rectangular pattern with spacing of 1.181" x 1.496" (approx. 30mm x 38mm)
Compatible with DMD Device Holders, Garmin units and most phone or tablet holders
CNC Machined 6061-T6 Billet Aluminum (Light and durable)
Beautiful Black Anodized finishing

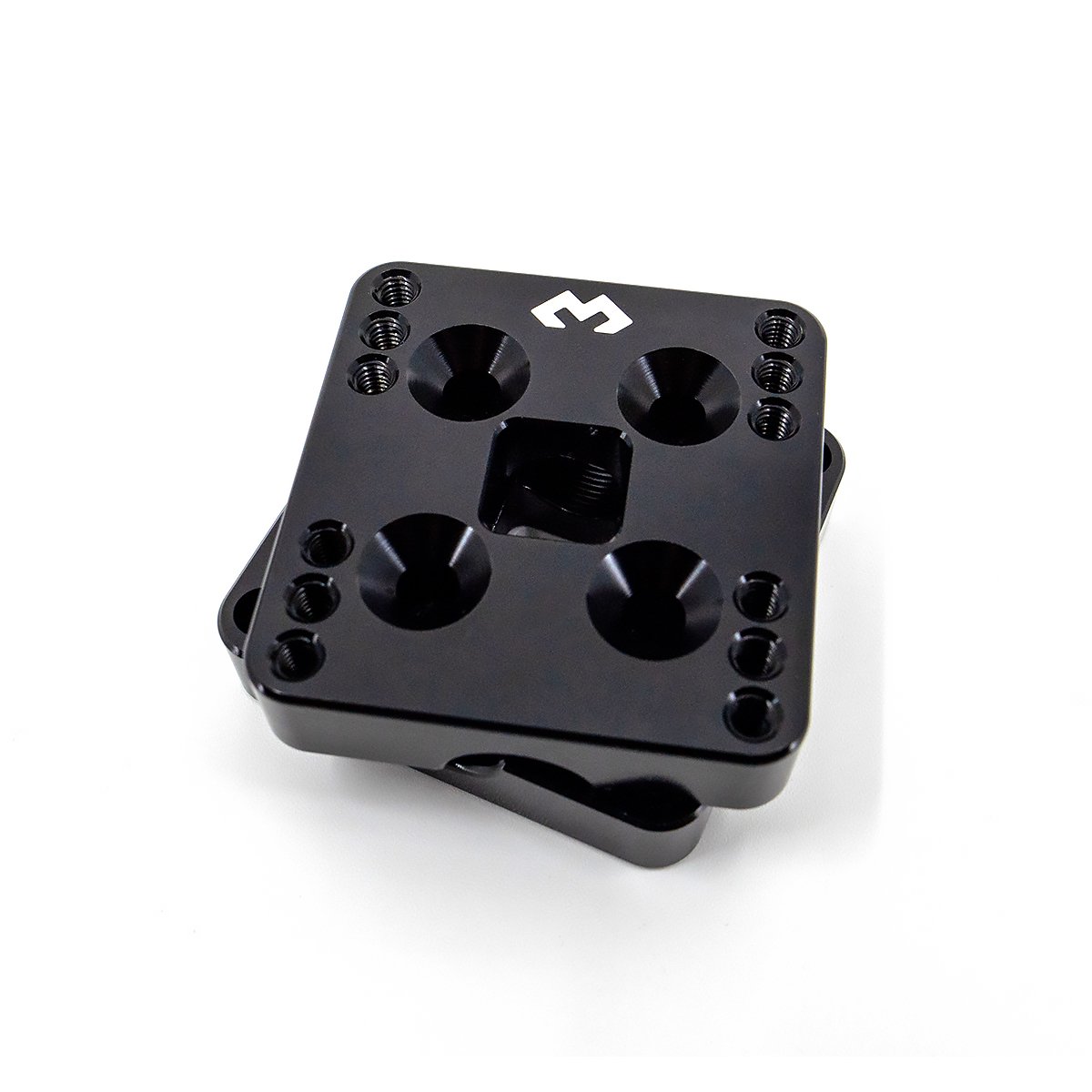

Hole pattern on base gives you the option for your device to be mounted in 3 different positions
Allows you to install your device horizontally or vertically

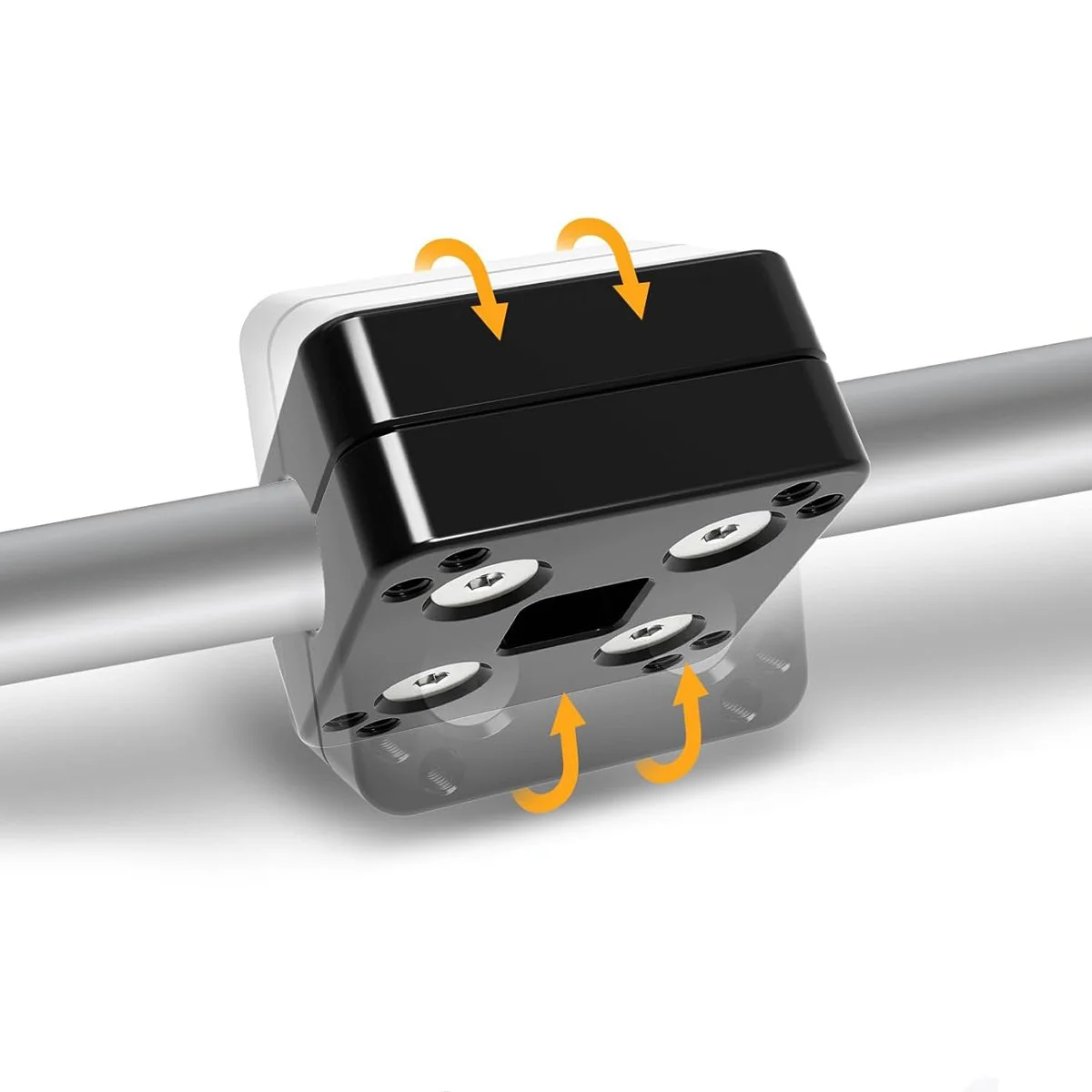

Fully adjustable to provide you with the perfect angle and location for viewing your device

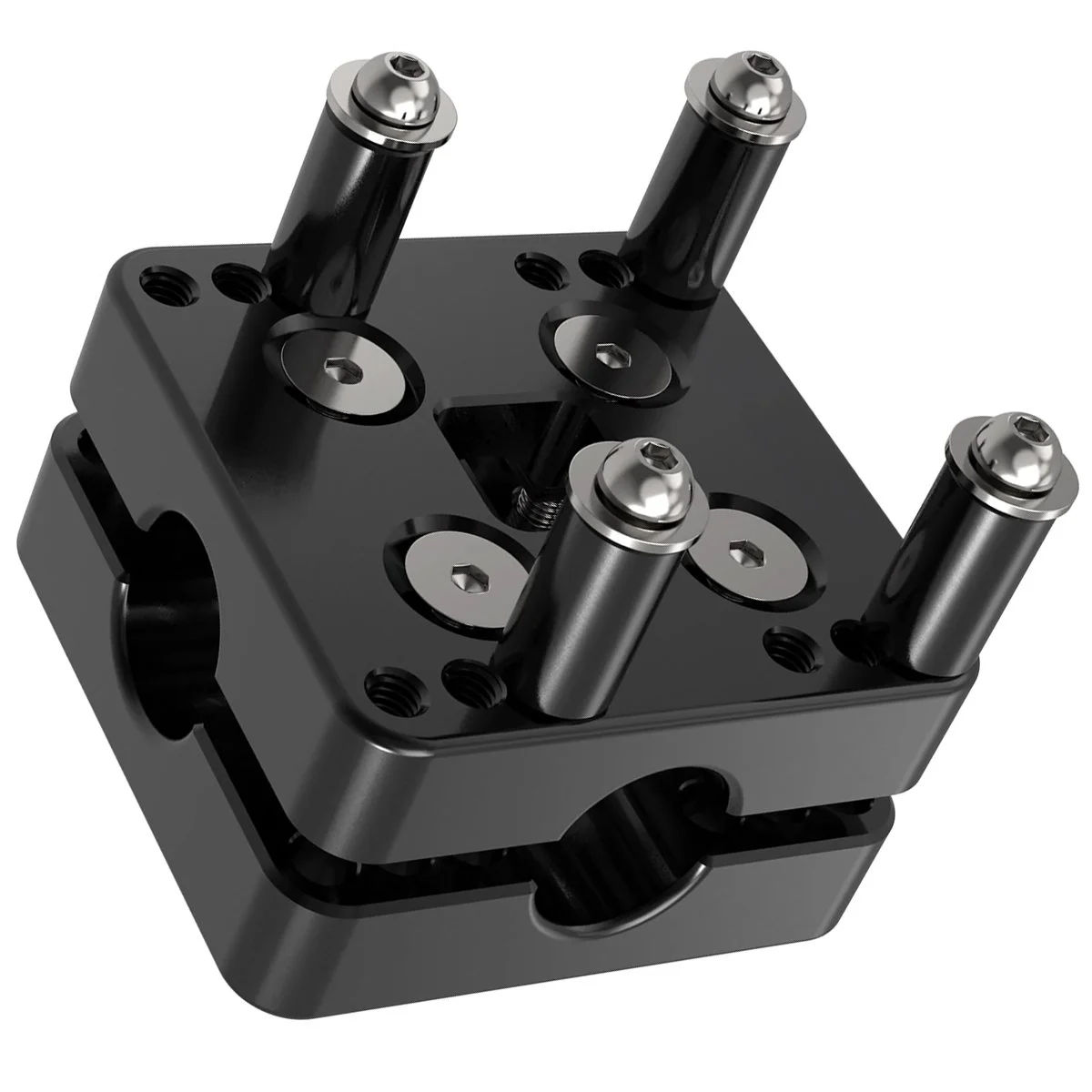

Use the included 15mm spacers to raise your device holder off the mount or to fit larger units to the base

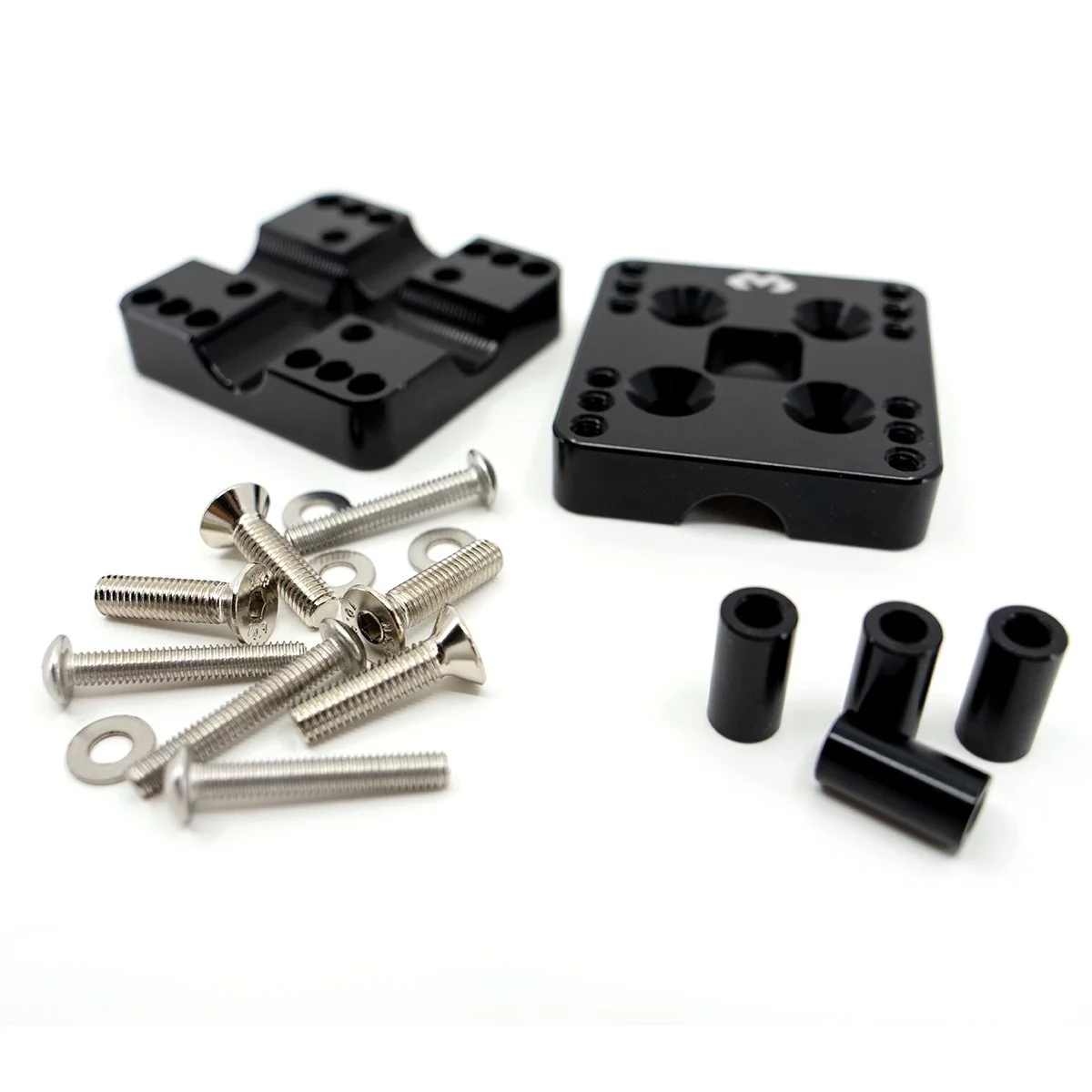

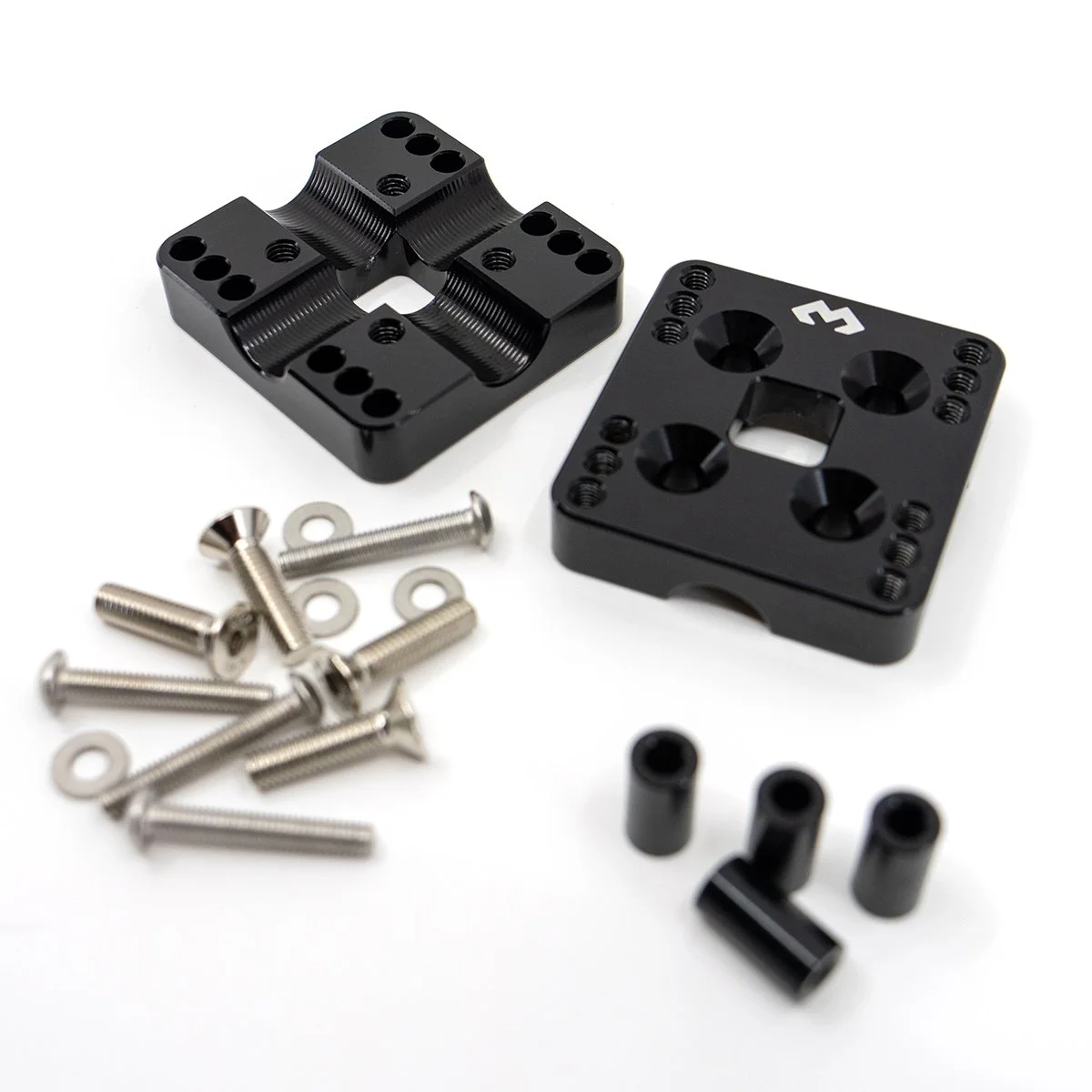

1- 12mm bar clamp base assembly
4- M5 Stainless Steel Allen Screws for the bar clamp base
4- M4 Stainless Steel Allen Screws for mounting your device holder
4- M4 Washers
4- 15mm spacers
